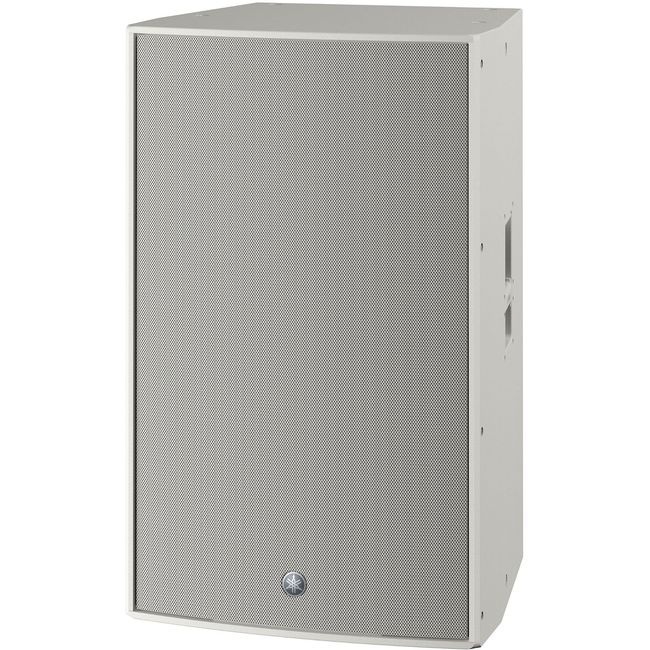

Yamaha DZR315W Powered Loudspeaker - White

Overview

The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

• 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
• Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR315)
• Durable Black or White finish

Specs

• Speaker type: 3-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 31Hz - 20kHz
• Coverage area: H75? x V50?
• Components
  • LF: 15" Cone, 3" Voice Coil, Neodymium magnet
  • MF: 8" Cone, 1.5" Voice Coil, Ferrite magnet
  • HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 700Hz (FIR-X), 2.5kHz (Passive)
• Sampling frequency rate – Internal: 96kHz and FIR Filter
• A/D D/A Converters: 96kHz AD/DA
• Maximum output level (1m; on axis): 143dB SPL *1
• Power rating
  • Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) *2
  • Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
  • Continuous: 950W (LF: 850W, MF/HF: 100W)
• I/O Connectors
  • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k?, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC: IEC AC inlet x1 (V-Lock)
• Amplifier class: Class-D
• Cooling: Fan cooling, Variable speeds
• Power consumption: 45W (Idle), 150W (1/8)
• Handle: Aluminium die-cast, Side x2
• Rigging: M10 x16
• Dimensions
  • W: 550 mm (21.6")
  • H: 897 mm (35.3") (with rubber feet)
  • D: 520 mm (20.5")
• Net weight: 41.6kg (91.7lbs)
• Options: Cover: SPCVR-DZR315
• Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
