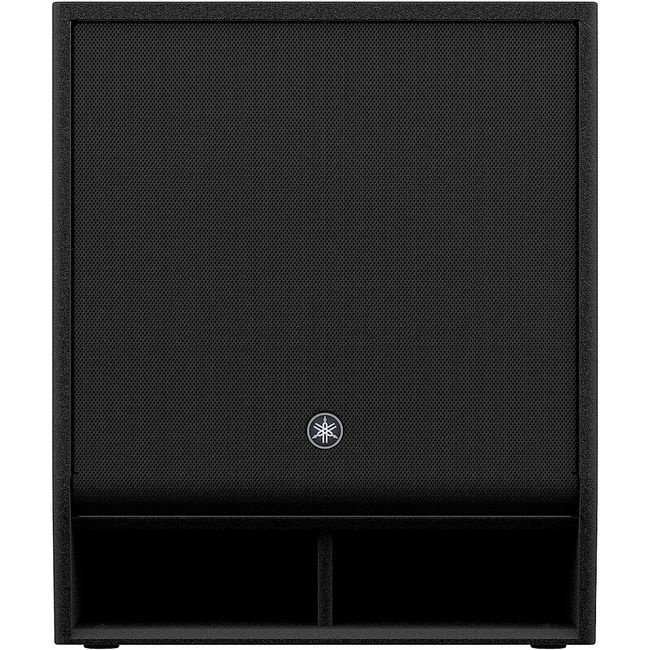

Yamaha DXS18XLF-D Powered Subwoofer - Black

Overview

Perfectly suited for use with DZR full-range speakers, the DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

• Powered 18” subwoofer with 4” Voice Coil
• Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
• High power 1600W Class-D amplifier module
• 96kHz DSP for true high-resolution sound with super low latency
• Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• Equipped with D-XSUB processing and cardioid mode capability
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
• Durable Black or White finish

Specs

• Speaker type: Powered Subwoofer, bass-reflex
• Frequency range (-10dB): 30Hz - 150Hz
• Components – LF: 18" Cone, 4" Voice Coil, Ferrite magnet
• Sampling frequency rate – Internal: 96kHz
• A/D D/A Converters: 96kHz AD/DA
• Maximum output level (1m; on axis): 136dB SPL *1
• SRC: Yes
• Power rating
  • Dynamic: 1600W *2
  • Burst (20ms): 1300W
  • Continuous: 1200W
• I/O Connectors
  • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k?, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
  • Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
  • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC: IEC AC inlet x1 (V-Lock)
• Amplifier class: Class-D
• Cooling: Fan cooling, Variable speeds
• Power consumption: 40W (Idle), 180W (1/8)
• Handle: Aluminium die-cast, Side x2
• Dimensions
  • W: 550 mm (21.7")
  • H: 657 mm (25.9") (with rubber feet)
  • D: 720 mm (28.3")
• Net weight: 48.9kg (107.8lbs)
• Options: Cover: SPCVR-DXS18X, Caster: SPW-1
• Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
• Pole socket: ?35 mm (depth 80mm), M20 Threaded (depth 25mm)
